Curtain/Blind Module (Panel Type)

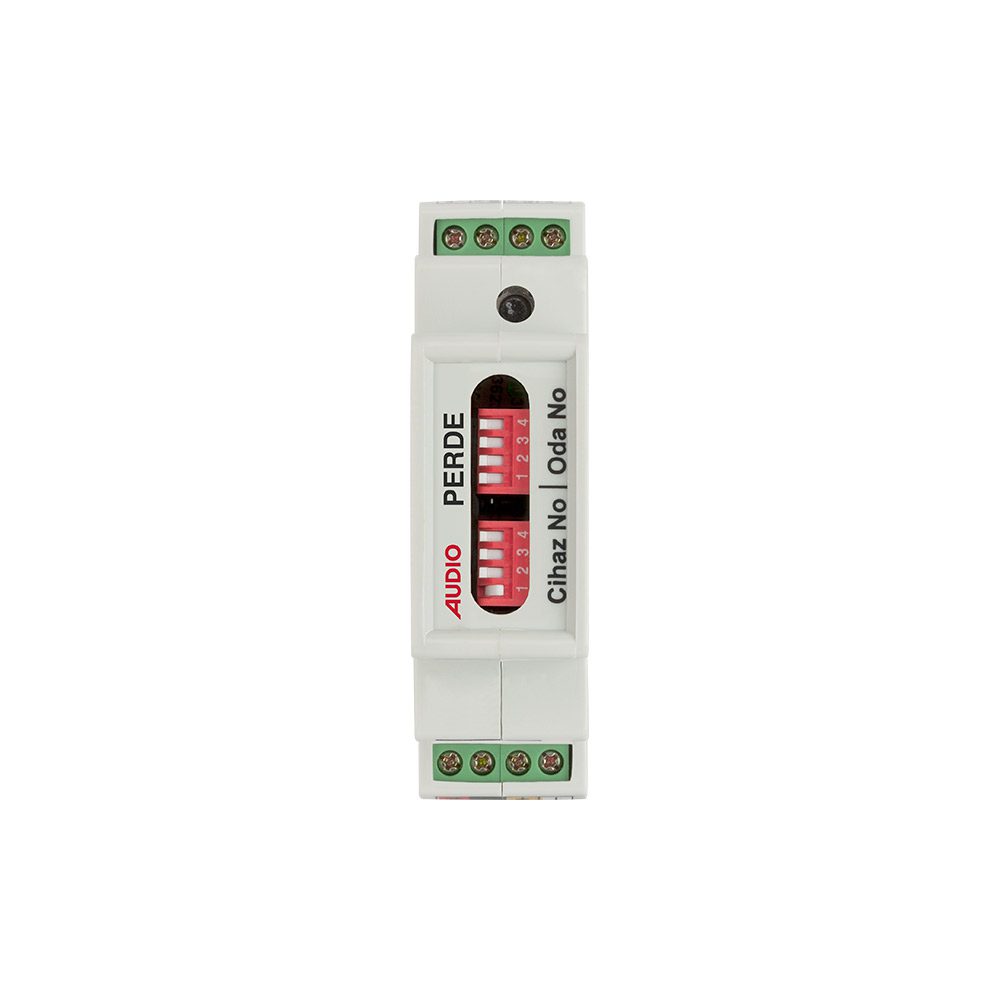

SPRING SWITCH 001803PT
REGULAR SWITCH 001803PT-N

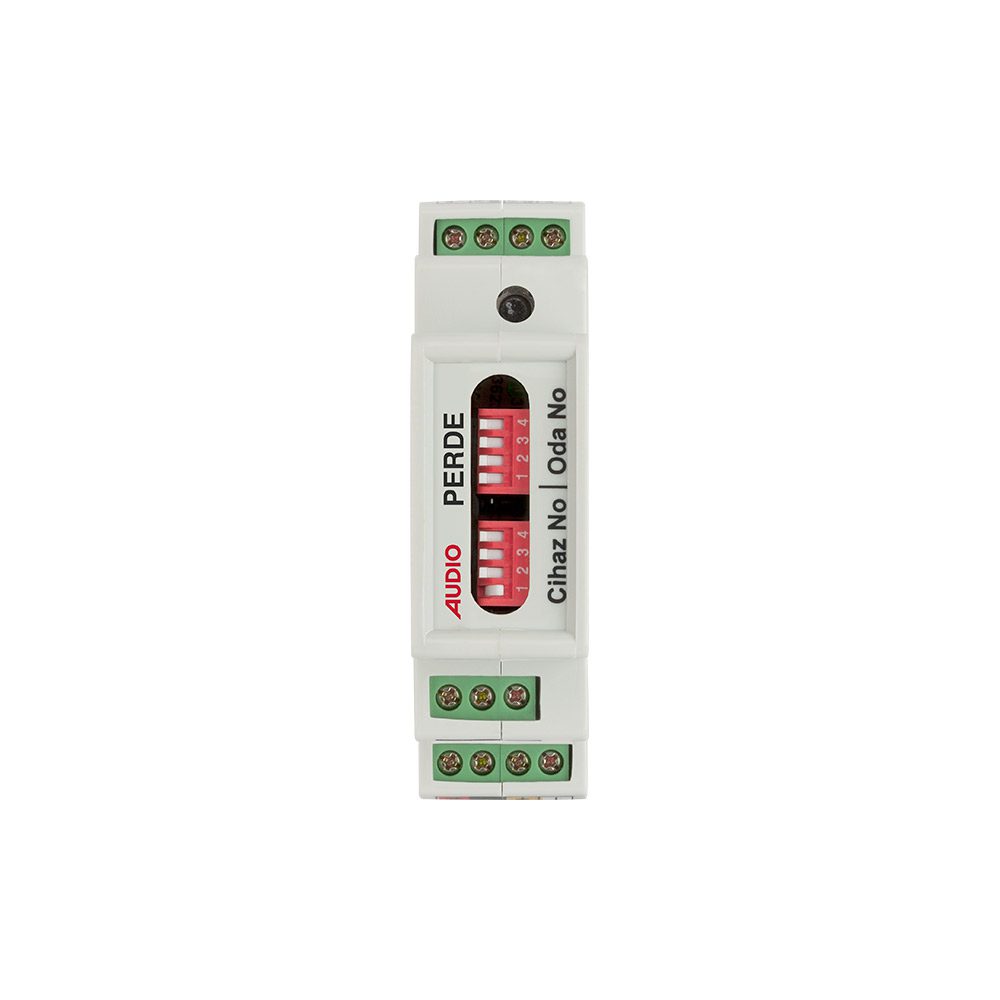

BUTTON RETURN (SPRING SWITCH) 001803PT-B
BUTTON RETURN (REGULAR SWITCH) 001803PT-B-N
- 1 Used for Curtain or Blinds
- Mounted on the panel board.
- The curtain / blind motor ends must come to the panel board.
- When the PT Module is selected, the input module behind the switch must also be installed.
- When the PT-B module is selected, the switch turns must also be switched to the module in the panel board.
- Module-OK-4 connection is made in the panel board.
- Room and Device Number are coded from Switches on Module.
- Setting Curtain Opening and Closing Time
- Operating Temperature Range: 0-50º C
- Resistant Up To 8 A
- Dimensions: 25 x 89 x 67 mm
