Boiler Module (Panel Type)

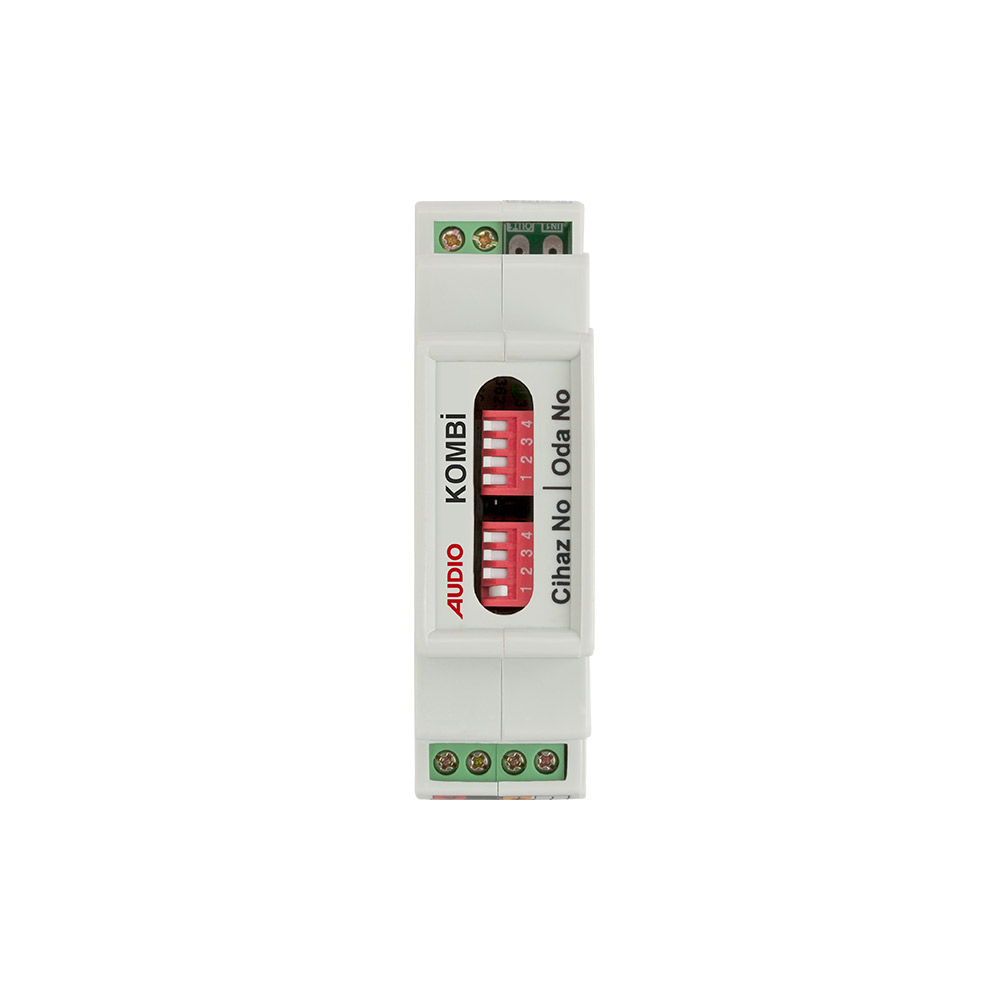

SPRING SWITCH 001807PT
REGULAR SWITCH 001807PT-N

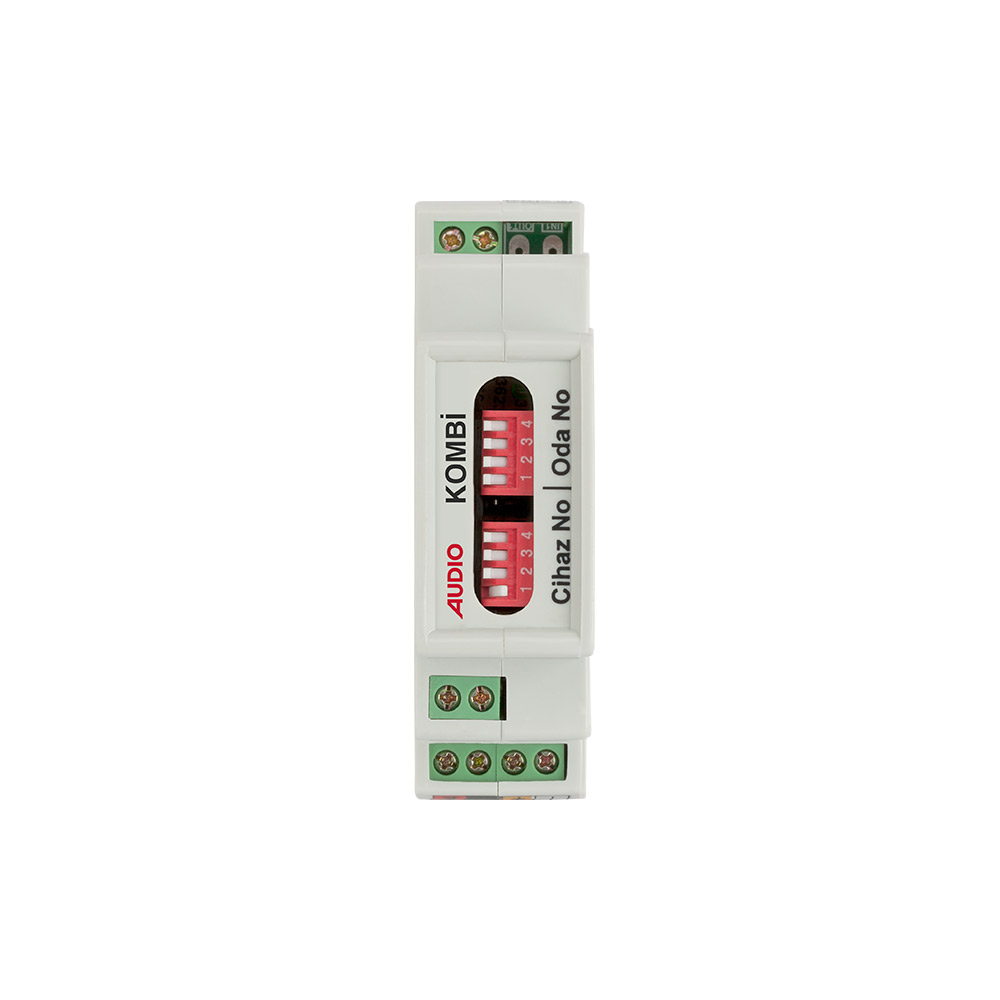

BUTTON RETURN (SPRING SWITCH) 001807PT-B
BUTTON RETURN (REGULAR SWITCH) 001807PT-B-N
- Used for 1 Boiler
- Mounted on the panel board.
- Neutral Pole Connects to the boiler and the phase output is drawn to the boiler.
- If you want to check with a boiler wrench, you should install the input module behind the switch when PT module is selected.
- If it is wanted to be controlled by a boiler wrench, switch turns should also be switched to the module in the panel board when
- PT-B module is selected.
- Room and Device Number are coded from Switches on Module.
- Operating Temperature Range: 0-50º C
- Resistant Up To 8 A
- Dimensions: 25 x 89 x 67 mm
